3D Angelfish Tropical Fish CNC DXF SVG Free Download

About This Design

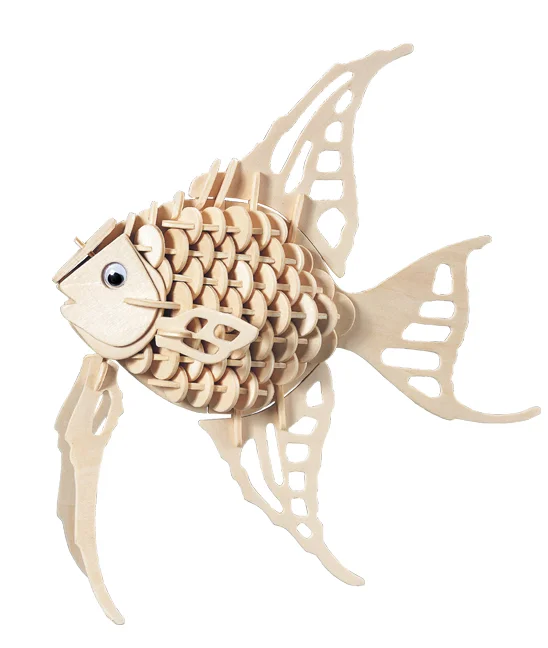

This stunning 3D angelfish design showcases the graceful beauty of tropical marine life through precision laser cutting technology. The design features a detailed fish body with intricate layered scales created through overlapping circular patterns that give remarkable depth and texture. The angelfish displays elegant flowing fins with delicate ribbed patterns and organic curves that capture the natural movement of these beautiful creatures. The head section includes a perfectly positioned eye detail and sleek profile that embodies the classic angelfish silhouette. Each scale element is carefully sized and positioned to create a three-dimensional effect when assembled, making this design a true masterpiece of CNC artistry.

Key Features

The design incorporates multiple layered components that create stunning visual depth and dimensionality when assembled. The intricate scale pattern uses varying sizes of overlapping elements to simulate the natural texture of fish scales. The flowing fins feature detailed ribbing patterns with smooth curves that emphasize the graceful nature of angelfish movement. The precision-cut eye detail adds personality and life to the finished piece, while the overall proportions maintain authentic angelfish characteristics for realistic appeal.

Compatible Materials

This versatile design works excellently with wood materials including 3-6mm plywood, MDF, and basswood for classic natural finishes. Acrylic sheets in 3-4mm thickness create stunning translucent effects, especially when backlit. The design also cuts beautifully in leather for unique decorative applications, while thin metals like aluminum or brass add premium appeal. For optimal results, use slower cutting speeds with multiple passes for thicker materials, and ensure proper ventilation when cutting synthetic materials like acrylic.

Use Cases & Applications

Perfect for creating eye-catching wall art in homes, offices, aquarium shops, and marine-themed restaurants or businesses. This design makes excellent gifts for fishing enthusiasts, marine biology students, or anyone who appreciates ocean life. Use it to create unique decorative elements for bathroom decor, beach house themes, or children’s rooms with ocean motifs. The 3D assembly aspect makes it ideal for educational projects, craft workshops, and DIY hobby activities. Business applications include custom signage for seafood restaurants, aquarium decorations, or promotional items for marine conservation organizations and fishing charter companies.

File Formats & Software

Download includes high-quality DXF vector files optimized for all major CNC and laser cutting software platforms. Compatible with LightBurn for laser operations, AutoCAD for professional design modification, CorelDRAW for graphics editing, and free software like Inkscape. The clean vector paths ensure smooth cutting operations without unnecessary nodes or complex curves that could cause machine hesitation. Files are pre-scaled but easily resizable to accommodate different project requirements and material dimensions.

Free Download & License

Access this premium 3D angelfish design completely free at hdidan.io without registration requirements or hidden fees. Instant download provides immediate access to all file formats for both personal crafting projects and commercial applications. The generous licensing terms allow unlimited use for business ventures, product creation, and resale of finished items. Join thousands of makers who trust hdidan.io for high-quality CNC designs that deliver professional results every time.
