Abstract Geometric Network Panel CNC DXF SVG Free Download

About This Design

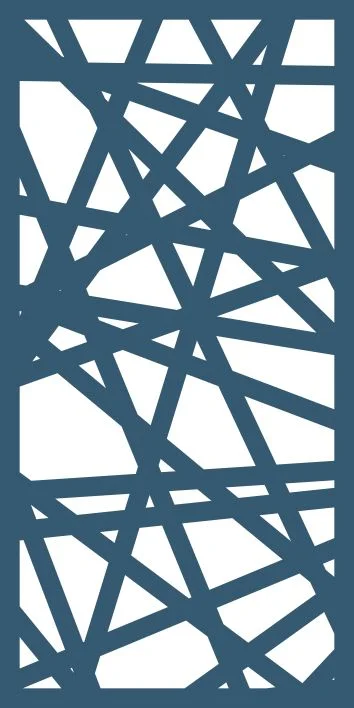

This striking abstract geometric network panel features an intricate web of intersecting diagonal and curved lines that create a dynamic visual composition. The design showcases a complex network of linear elements that cross and weave throughout the rectangular panel, forming numerous triangular and polygonal negative spaces of varying sizes. The lines appear to flow organically while maintaining geometric precision, creating depth and movement within the flat surface. The pattern density varies across the panel, with some areas featuring tighter line intersections and others allowing for larger open spaces, giving the design a balanced yet energetic appearance that would complement modern architectural and interior design aesthetics.

Key Features

The design’s standout characteristic is its sophisticated balance between chaos and order, where seemingly random line intersections actually create a harmonious geometric pattern. The varying thickness of the structural elements and the diverse sizing of the negative spaces make this panel particularly effective as a decorative screen or room divider. The interconnected network design ensures structural integrity while maintaining visual lightness, and the absence of small intricate details makes it ideal for reliable CNC laser cutting across different material thicknesses and types.

Compatible Materials

This versatile design works exceptionally well with wood materials including plywood, MDF, and solid hardwoods in thicknesses ranging from 3mm to 12mm. For modern applications, acrylic sheets between 3-6mm thickness produce stunning results, especially when backlit. The design also cuts beautifully in metals such as aluminum or steel up to 3mm thickness, though thicker materials may require adjusted cutting parameters. When working with softer materials like leather or cardboard, reduce cutting speed to prevent burning along the extensive linear cuts.

Use Cases & Applications

This abstract network panel design serves multiple decorative and functional purposes in residential and commercial spaces. As an architectural screen or room divider, it provides privacy while allowing light flow and maintaining visual connection between spaces. The design works excellently as wall art in modern offices, restaurants, or contemporary homes, either as a single statement piece or arranged in multiples for larger installations. Interior designers frequently use such panels as headboard features, cabinet door inserts, or decorative ceiling elements. The pattern also translates well to smaller applications like laptop stands, book ends, or decorative boxes when scaled appropriately.

File Formats & Software

The design is provided in DXF format, ensuring broad compatibility across professional CNC and laser cutting software platforms. LightBurn users can directly import and optimize cutting parameters for various laser systems, while AutoCAD and similar CAD software allow for easy scaling and modification. CorelDRAW and Inkscape users can convert the DXF file for vector editing and customization. The clean vector paths ensure smooth cutting operations without the need for additional cleanup or optimization, making it ready for immediate production use.

Free Download & License

Access this professional-quality abstract network panel design completely free at hdidan.io without any registration requirements or hidden fees. The download provides immediate access to high-quality DXF files optimized for CNC laser cutting applications. Our generous licensing terms allow both personal and commercial use, enabling makers, designers, and businesses to create and sell finished products using this design. The file includes detailed cutting guidelines and material recommendations to ensure successful results across various applications and production scales.

Discover premium free CNC files and laser cut designs at hdidan.io, your ultimate destination for professional DXF SVG CDR downloads. Our extensive collection of CNC router files includes geometric patterns, decorative panels, and architectural elements perfect for woodworking, acrylic cutting, and metal fabrication projects. Each design is carefully crafted and optimized for reliable cutting performance across various materials and thicknesses, ensuring professional results for makers, designers, and manufacturing businesses seeking high-quality vector files for their laser cutting and CNC routing applications.
