American Flag Patriotic CNC DXF SVG Free Download

About This Design

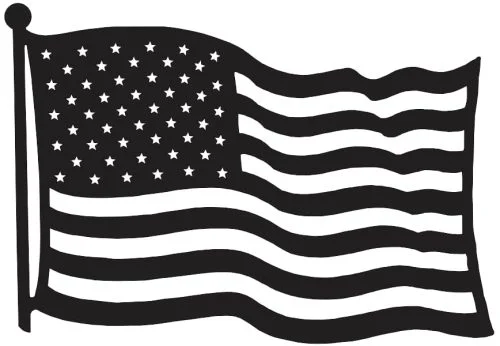

This stunning American flag design features the iconic stars and stripes pattern rendered in perfect black and white silhouette style for CNC laser cutting. The design showcases 50 five-pointed stars arranged in the traditional 9-row pattern within the canton (upper left rectangle), representing all 50 states of America. Thirteen horizontal stripes extend across the flag, symbolizing the original thirteen colonies. The design maintains accurate proportions with the canton occupying approximately 7/13 of the flag’s height and 2/5 of its width. Each star is precisely positioned and sized for optimal cutting results, while the clean horizontal lines create bold contrast perfect for various materials and thicknesses.

Key Features

This patriotic design stands out with its mathematically precise star arrangement and perfectly proportioned stripes that maintain authenticity to the official American flag specifications. The high-contrast black and white format ensures clean cuts on any CNC machine or laser cutter. All elements are optimized for various scales, from small decorative items to large wall installations. The design includes proper spacing between elements to prevent material weakness while maintaining visual impact and patriotic symbolism that resonates with American pride.

Compatible Materials

This versatile American flag design cuts beautifully on wood (pine, oak, maple), MDF, plywood, acrylic sheets, leather, and various metals including aluminum and steel. For wood materials, use 3-12mm thickness for optimal results. Acrylic works best at 3-6mm thickness to prevent cracking around detailed star points. Metal cutting requires appropriate laser power settings, with 1-3mm thickness recommended. When cutting intricate star details, reduce cutting speed and ensure proper material securing. Test cuts on scrap material help determine optimal settings for your specific CNC machine and chosen material combination.

Use Cases & Applications

This patriotic American flag design serves countless applications from home decor to commercial products. Create stunning wall art for living rooms, offices, man caves, or veteran spaces. Perfect for Memorial Day, Fourth of July, Veterans Day decorations and patriotic themed events. Craft unique gifts for military personnel, veterans, or patriotic Americans. Business applications include signage for American-made products, restaurant decor, retail displays, and promotional materials. Educational uses span classroom decorations, history project components, and civic celebration displays. The design works beautifully as standalone art or incorporated into larger patriotic compositions, making it ideal for custom woodworking projects, metal art installations, and personalized commemorative pieces.

File Formats & Software

Download includes comprehensive RAR archive containing multiple file formats: DXF for AutoCAD and most CAD software, SVG for Inkscape and web applications, and CDR for CorelDRAW users. Files are compatible with popular CNC software including LightBurn, Aspire, VCarve, and LaserGRBL. Simply import your preferred format, adjust size and cutting parameters for your material, and begin cutting. Vector-based files scale infinitely without quality loss, ensuring crisp results at any size from small ornaments to large wall installations.

Free Download & License

Access this professional American flag CNC design completely free at hdidan.io without registration requirements or hidden fees. Instant download provides immediate access to all file formats. Licensed for both personal and commercial use, allowing product creation, sales, and business applications. Our extensive free CNC library offers hundreds of designs for makers, entrepreneurs, and hobbyists. Download once and use forever across multiple projects, making this an invaluable addition to any CNC designer’s collection of patriotic and americana-themed cutting files.
