Bathroom Restroom WC Door Sign CNC DXF SVG Free Download

About This Design

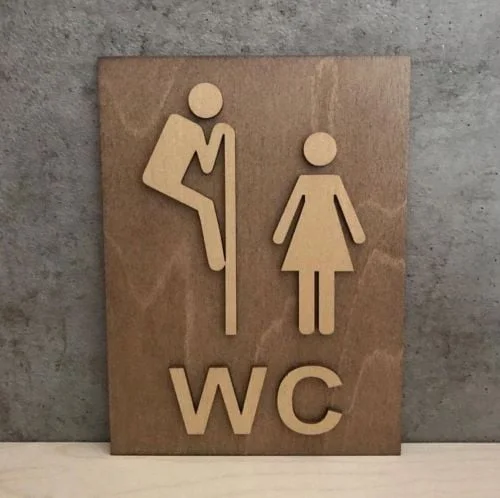

This professional bathroom door sign features a clean, modern design with clearly defined male and female figure symbols positioned above bold “WC” lettering. The design is cut from a single rectangular wooden panel with raised relief elements that create excellent visual contrast and readability. The male figure is depicted in a classic stance with one leg raised, while the female figure shows a traditional dress silhouette. Both figures feature circular heads and simplified body forms that are universally recognizable. The “WC” letters at the bottom are bold and substantial, ensuring clear identification from a distance. The overall dimensions create a perfect rectangular format ideal for standard door mounting applications.

Key Features

This bathroom sign design incorporates raised relief cutting that creates dimensional depth and enhanced visibility. The simplified iconography ensures universal recognition across different cultures and languages. The proportions are carefully balanced with adequate spacing between elements for optimal readability. The design includes clean, professional lines suitable for both residential and commercial applications. The single-panel construction simplifies manufacturing while maintaining structural integrity and professional appearance throughout extended use.

Compatible Materials

This design works exceptionally well with wood materials including MDF, plywood, and solid hardwoods in thicknesses from 6mm to 12mm. Acrylic sheets between 3mm to 6mm produce excellent results with crisp edges and smooth finishes. Metal materials such as aluminum, steel, and brass can be cut effectively at 1-3mm thickness. When cutting wood, use slower speeds for clean edges. For acrylic, ensure proper ventilation and use appropriate cutting speeds to prevent melting. Metal cutting requires specific laser settings and proper safety equipment.

Use Cases & Applications

Perfect for office buildings, restaurants, retail stores, medical facilities, and residential homes requiring professional restroom signage. Ideal for hotels, cafes, and public facilities needing clear, universally understood bathroom identification. Excellent for interior designers creating cohesive signage systems throughout commercial spaces. Suitable for Airbnb properties, home offices, and basement renovations requiring professional-grade restroom signs. Event venues, wedding halls, and conference centers benefit from this clean, professional design. The versatile format works equally well for wall mounting or door hanging applications in various architectural settings.

File Formats & Software

Download includes DXF, SVG, and CDR formats in a convenient ZIP package for maximum compatibility across different software platforms. Works seamlessly with LightBurn laser software, AutoCAD for precise modifications, CorelDRAW for vector editing, and free Inkscape software. The files are optimized for direct importing without scaling issues. Simply unzip the download, select your preferred format, import into your cutting software, adjust material settings, and begin cutting. All paths are properly closed and optimized for efficient cutting operations.

Free Download & License

Available as a completely free download at hdidan.io with no registration requirements or hidden fees. Instant access allows immediate downloading and use for both personal and commercial projects. The generous licensing terms permit unlimited cutting for resale, business signage, and client projects. Perfect for CNC businesses, makerspaces, and individual crafters building professional signage solutions. No attribution required, though always appreciated. Start your download today and create professional bathroom signage within minutes of accessing these high-quality cutting files.

Transform your space with professional bathroom signage using our premium CNC laser cut files available for free download. These meticulously crafted DXF SVG CDR designs provide exceptional cutting precision for wood, acrylic, and metal materials. Our comprehensive CNC router files collection at hdidan.io ensures you have access to the highest quality laser cutting designs for both personal and commercial applications, delivering professional results every time.
