Cat House Tower Multi-Level Pet Furniture CNC DXF SVG Free Download

About This Design

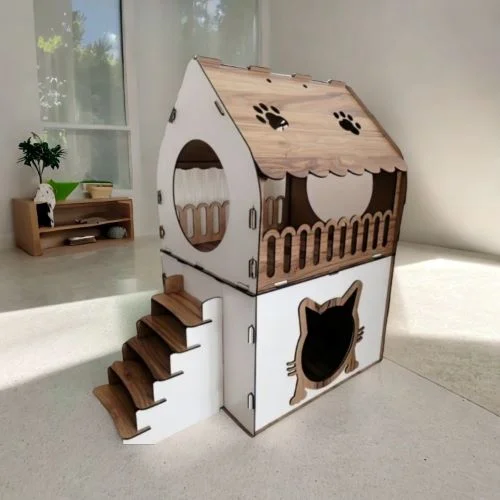

This exceptional multi-level cat house tower design features a sophisticated two-story structure with intricate architectural details perfect for laser cutting and CNC routing. The design showcases a charming house-style upper level with decorative paw print cutouts on the slanted roof, round and rectangular window openings, and a distinctive balcony area with vertical slat railings. The lower level includes a spacious entrance with an elegant cat silhouette cutout and additional window features. A practical external staircase with individual steps connects both levels, allowing easy access for cats of all sizes. The entire structure demonstrates excellent engineering with precise interlocking joints and thoughtful proportions that ensure structural stability while maintaining an attractive aesthetic appeal.

Key Features

This cat house tower design incorporates several outstanding features that set it apart from standard pet furniture plans. The dual-level construction maximizes vertical space utilization while providing multiple resting and play areas. Decorative paw print cutouts on the roof add whimsical charm while serving as ventilation holes. The integrated staircase system features individual steps that can be easily assembled and provides safe navigation between levels. Multiple window openings in various shapes create visual interest and allow natural light penetration throughout the structure.

Compatible Materials

This versatile design works exceptionally well with various materials suitable for laser cutting and CNC routing. Plywood ranging from 6mm to 12mm thickness provides excellent structural integrity and cost-effectiveness. MDF offers smooth finishing properties and consistent cutting results, ideal for painted finishes. Solid wood species like birch or oak create premium, durable pet furniture with natural beauty. For outdoor applications, marine-grade plywood or treated lumber ensures weather resistance. When cutting, maintain consistent feed rates and appropriate power settings to achieve clean edges and precise joint fits.

Use Cases & Applications

This multi-level cat house design serves numerous practical applications for pet owners, woodworkers, and small business entrepreneurs. Perfect as a premium pet furniture piece for indoor cats seeking vertical territory and cozy hideaways. Ideal for pet stores, veterinary clinics, and animal shelters requiring durable, easy-to-clean housing solutions. Woodworking enthusiasts can create personalized gifts for cat-loving friends and family members. Small businesses specializing in custom pet furniture can offer this design as a signature product. The modular construction allows for customization in size, color, and decorative elements. Cat cafes and pet boarding facilities benefit from the space-efficient vertical design that accommodates multiple cats while minimizing floor space requirements.

File Formats & Software

The complete design package includes professionally prepared files in multiple formats to ensure compatibility with various CNC and laser cutting systems. DXF files work seamlessly with AutoCAD, LightBurn, and most CNC control software. SVG format provides excellent compatibility with Inkscape, CorelDRAW, and web-based design applications. All files feature properly scaled dimensions, organized layers for different cutting operations, and optimized tool paths for efficient material usage. Import the files directly into your preferred software, adjust material thickness settings, and begin cutting immediately without additional modifications required.

Free Download & License

Access this premium cat house tower design absolutely free at hdidan.io without registration requirements or hidden fees. Instant download provides immediate access to all file formats and detailed assembly instructions. The generous licensing terms permit both personal and commercial use, making it perfect for hobbyists and small businesses alike. Create unlimited copies for personal use, sell finished products, or incorporate elements into larger projects. Our commitment to providing high-quality, free CNC designs ensures makers worldwide can access professional-grade patterns without budget constraints, fostering creativity and craftsmanship in the maker community.
