Chess Pieces Set CNC DXF SVG Free Download

About This Design

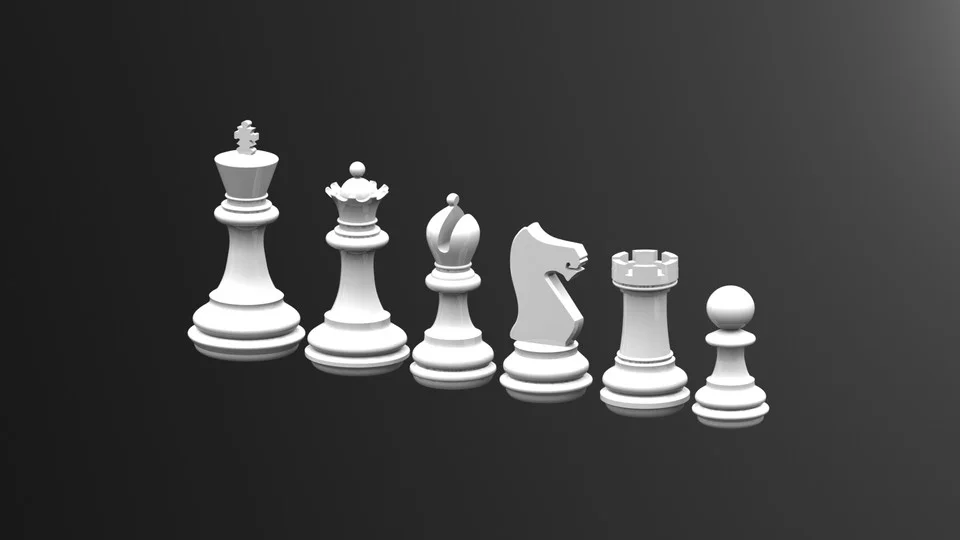

This comprehensive chess pieces set features all six traditional chess piece designs rendered in elegant white against a dark gradient background. The collection includes the majestic king with its distinctive cross-topped crown, the powerful queen with her ornate coronet, the diagonal-moving bishop with his mitered hat, the L-shaped knight depicted as a horse head, the castle-like rook with crenellated battlements, and the simple yet essential pawn. Each piece showcases classic chess proportions with wide, stable bases tapering to distinctive tops that make identification easy during gameplay. The designs maintain traditional chess piece silhouettes while being optimized for CNC laser cutting with clean lines and appropriate detail levels.

Key Features

These chess piece designs are specifically optimized for CNC laser cutting with precise vector paths and scalable dimensions. Each piece maintains proper proportional relationships to standard chess sets while featuring simplified details that cut cleanly without small intricate elements that might break. The wide bases provide excellent stability, and the distinctive silhouettes ensure easy piece identification during gameplay. All pieces are designed with consistent line weights and cutting paths that work efficiently with laser cutting systems.

Compatible Materials

These chess piece designs work excellently with various materials including hardwoods like maple, walnut, or cherry for premium sets, MDF and plywood for practice sets, and acrylic for modern transparent or colored pieces. Recommended thickness ranges from 3-6mm for standard play sets, though they can be scaled for larger decorative versions. When cutting wood, use multiple passes at moderate speeds for clean edges. For acrylic, single passes at higher speeds prevent melting. Metal cutting is possible with appropriate laser power settings.

Use Cases & Applications

Perfect for creating custom chess sets for personal use, gifts, or commercial sales. These pieces work well for educational environments, chess clubs, tournament sets, or decorative oversized lawn chess sets. Craft businesses can use these designs to create unique chess sets in various materials and finishes. They’re ideal for woodworking projects, maker space activities, and custom game manufacturing. The scalable nature allows for both standard tournament size pieces and large decorative installations for parks, schools, or entertainment venues.

File Formats & Software

Available in DXF format for maximum compatibility with CNC laser cutting software including LightBurn, AutoCAD, CorelDRAW, Adobe Illustrator, and Inkscape. The vector format ensures clean scaling to any desired size while maintaining sharp edges and precise cutting paths. Files import easily into most CAM software for immediate cutting setup. Compatible with CO2 lasers, fiber lasers, and CNC routers with appropriate bit selection for routing applications.

Free Download & License

Download this complete chess pieces set absolutely free from hdidan.io without registration or account creation. Files are available for instant download and can be used for both personal projects and commercial applications without licensing restrictions. Perfect for hobbyists, small businesses, educational institutions, and craft entrepreneurs looking to create quality chess sets. The free license allows unlimited cutting and selling of finished products made from these designs.
