Chess Set Pieces CNC DXF SVG Free Download

About This Design

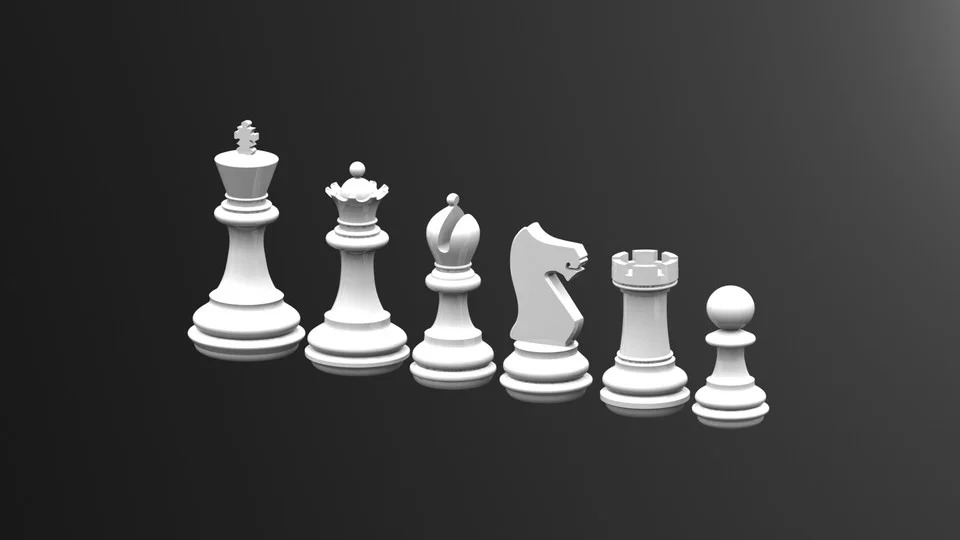

This comprehensive chess set design features all six traditional chess pieces rendered in elegant 3D-style profiles perfect for CNC laser cutting. The collection includes the majestic king with its distinctive cross crown, the powerful queen with ornate decorative top, the bishop with its characteristic mitered cap, the knight showcasing a detailed horse head silhouette, the castle-shaped rook with crenellated battlements, and the classic pawn with its simple rounded top. Each piece displays traditional proportions and recognizable silhouettes that chess enthusiasts will immediately identify. The designs feature clean lines and smooth curves optimized for precision cutting, with proper scaling relationships between pieces to create a professional tournament-standard chess set.

Key Features

These chess piece designs showcase exceptional attention to detail with authentic traditional styling that maintains the classic hierarchy and proportions found in premium chess sets. Each piece features optimized cutting paths that minimize material waste while ensuring structural integrity. The designs include proper base dimensions for stability during gameplay, with consistent scaling across all pieces. The clean vector artwork eliminates complex internal details that could complicate the cutting process, while preserving the essential identifying characteristics that make each piece instantly recognizable to players of all skill levels.

Compatible Materials

These chess piece patterns work excellently with various materials including hardwoods like oak, maple, or walnut for premium sets, as well as cost-effective MDF and plywood options for practice or decorative sets. Acrylic materials in 6-12mm thickness create stunning transparent or colored modern chess sets, while leather cutting produces unique portable travel sets. For metal fabrication, use 3-6mm steel, aluminum, or brass for industrial-style sets. Recommended cutting speeds should be reduced for intricate areas like the knight’s mane and king’s crown details to ensure clean edges and prevent burning on organic materials.

Use Cases & Applications

Perfect for creating custom chess sets for personal enjoyment, educational purposes, or commercial retail. These designs work excellently for woodworking businesses specializing in games and puzzles, maker spaces offering laser cutting services, or educational institutions teaching both chess strategy and manufacturing skills. The files enable production of themed chess sets for tournaments, chess clubs, schools, libraries, and recreation centers. Gift shops and craft businesses can create personalized chess sets with custom engravings or materials. The designs also work for oversized garden chess sets, decorative wall art featuring chess pieces, or promotional items for chess-related businesses and events.

File Formats & Software

The download includes professional DXF vector files compatible with all major CNC and laser cutting software including LightBurn, AutoCAD, CorelDRAW, Adobe Illustrator, and Inkscape. The DXF format ensures universal compatibility across different machine brands and cutting systems. Files are properly scaled and organized with clear cutting paths that require minimal setup time. Simply import the files into your preferred software, adjust material settings, and begin cutting. The vector format allows easy scaling for different sized chess sets while maintaining crisp edge quality and proportional accuracy.

Free Download & License

Download these professional chess piece designs completely free at hdidan.io without any registration requirements or hidden fees. The files are available for immediate download with full commercial and personal use rights, allowing you to create and sell finished chess sets without royalty payments. Our extensive library includes thousands of similar high-quality CNC and laser cutting designs. The generous licensing terms support both hobbyists creating single sets and businesses producing chess sets for retail sale, making this an valuable resource for makers at every level.

Discover premium chess piece CNC laser cut designs perfect for creating professional tournament-quality chess sets. These free DXF SVG CDR files from hdidan.io provide complete chess piece patterns optimized for CNC router and laser cutting applications. Download includes all six traditional chess pieces with authentic proportions and clean vector artwork suitable for wood, acrylic, and metal fabrication projects.
