Decorative Screen Panel Geometric CNC DXF SVG Free Download

About This Design

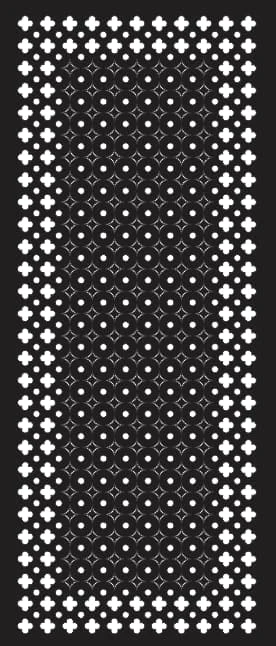

This stunning decorative screen panel features an intricate geometric pattern that creates a mesmerizing visual effect. The design showcases a repeating motif of interconnected diamond shapes and circular elements arranged in a sophisticated grid pattern. The central area displays a denser concentration of geometric forms, gradually transitioning to more open spacing toward the edges. The overall composition measures in a rectangular format, making it ideal for various architectural and decorative applications. The precise mathematical arrangement of shapes creates depth and visual interest while maintaining perfect symmetry throughout the entire panel.

Key Features

The design stands out with its perfect balance between positive and negative space, creating excellent light filtration properties when used as a room divider or window screen. The intricate geometric patterns are meticulously crafted to ensure clean cutting lines and structural integrity. Each element is strategically positioned to maintain the panel’s strength while maximizing its decorative appeal. The repeating pattern creates a hypnotic visual effect that adds sophisticated elegance to any space.

Compatible Materials

This versatile design works excellently with various materials including plywood, MDF, solid wood, acrylic sheets, and even thin metal plates. For wood materials, recommended thickness ranges from 3mm to 12mm depending on the final size requirements. Acrylic panels work beautifully at 3-6mm thickness, providing excellent light transmission effects. When cutting metal, consider using 1-3mm thickness for optimal results. Always ensure proper ventilation and appropriate cutting speeds for each material type.

Use Cases & Applications

This decorative screen panel serves multiple purposes in both residential and commercial settings. It’s perfect for creating elegant room dividers that maintain visual connection while defining separate spaces. Use it as striking wall art in modern interiors, or incorporate it into architectural projects as decorative facades or privacy screens. The design works wonderfully for restaurant dividers, hotel lobby features, retail store displays, and contemporary home decor. It also makes an excellent backdrop for photography studios or event spaces, adding sophisticated geometric interest to any environment.

File Formats & Software

The download package includes multiple file formats compressed in a convenient RAR archive. You’ll receive DXF files compatible with AutoCAD and most CNC software, SVG files perfect for Inkscape and web applications, and CDR files for CorelDRAW users. These files work seamlessly with popular laser cutting software like LightBurn, LaserWeb, and RDWorks. Simply import the appropriate file format into your preferred software, adjust the cutting parameters for your material, and you’re ready to create this beautiful decorative panel.

Free Download & License

Access this professional-quality decorative screen panel design absolutely free at hdidan.io without any registration requirements or hidden fees. The download begins instantly upon clicking, providing you with all necessary file formats for immediate use. This design comes with full commercial and personal use rights, allowing you to create and sell finished products without restrictions. Whether you’re a hobbyist, small business owner, or professional fabricator, you can use this design for unlimited projects and applications.
