Diamond Gradient Pattern CNC DXF SVG Free Download

About This Design

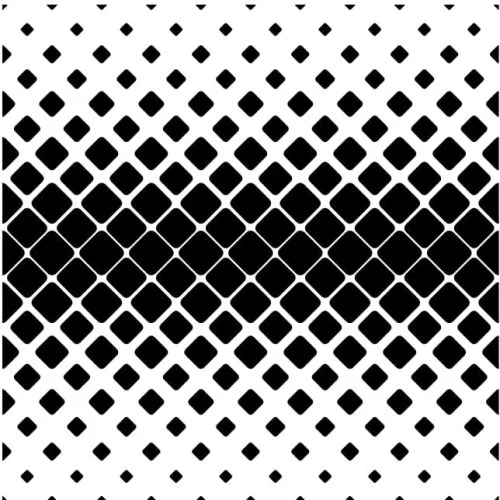

This striking diamond gradient pattern features a sophisticated halftone effect that creates visual depth and modern appeal. The design consists of diamond-shaped elements arranged in a precise grid formation, transitioning from small diamonds at the top and bottom edges to larger, more prominent diamonds in the center. The gradient effect is achieved through the systematic scaling of diamond sizes, creating an optical illusion of depth and movement. The pattern maintains perfect symmetry both horizontally and vertically, with clean geometric lines and sharp angles that showcase precision cutting capabilities. The white background contrasts beautifully with the black diamond shapes, ensuring excellent visibility and striking visual impact when cut from various materials.

Key Features

The diamond gradient pattern showcases exceptional geometric precision with its systematic size progression and perfect alignment. The halftone gradient effect creates a three-dimensional appearance that adds sophistication to any project. The design maintains consistent spacing between elements while varying the diamond sizes to achieve the gradient transition. Sharp, clean edges ensure precise cutting results, while the scalable vector format allows for size adjustments without quality loss. The symmetric layout provides versatility for both standalone pieces and modular installations, making it ideal for contemporary design applications.

Compatible Materials

This diamond pattern cuts exceptionally well on wood materials including plywood, MDF, and solid hardwoods with thicknesses ranging from 3mm to 20mm. Acrylic sheets from 2mm to 10mm produce stunning results with clean, polished edges that enhance the geometric precision. Metal cutting applications work well with aluminum, stainless steel, and mild steel up to 3mm thickness, creating durable decorative panels. Leather and fabric cutting requires careful speed and power adjustments to prevent burning while maintaining clean diamond edges. The intricate pattern may require multiple passes on thicker materials to achieve complete cutting.

Use Cases & Applications

This versatile diamond gradient pattern excels in modern interior design applications, particularly as decorative wall panels that create stunning focal points in contemporary spaces. The design works perfectly for room dividers, privacy screens, and architectural elements that require both functionality and aesthetic appeal. Custom furniture makers can incorporate this pattern into cabinet doors, headboards, and decorative inserts. The gradient effect makes it ideal for lighting applications, creating beautiful shadow patterns when backlit. Commercial applications include retail displays, exhibition panels, and corporate branding elements. Craft enthusiasts can use scaled versions for jewelry, coasters, and gift items, while the pattern also serves well for ventilation grilles and speaker covers where both form and function are important.

File Formats & Software

The download package includes high-quality DXF, SVG, and CDR vector files compressed in a convenient RAR archive. These formats ensure compatibility with popular CNC software including LightBurn for laser cutting, AutoCAD for professional design work, and CorelDRAW for vector editing and customization. The SVG format works perfectly with free software like Inkscape, making the design accessible to all users regardless of their software budget. Files are optimized for direct import without requiring cleanup or path adjustments, ensuring smooth workflow from download to cutting.

Free Download & License

Access this premium diamond gradient pattern completely free at hdidan.io without any registration requirements or hidden fees. The instant download system provides immediate access to all file formats, allowing you to start your project right away. The generous license terms permit both personal and commercial use, making this design perfect for hobbyists, professionals, and businesses alike. No attribution is required, though it’s always appreciated. The high-quality files are professionally prepared and tested to ensure reliable cutting results across different CNC systems and software platforms.
