Ferris Wheel Carnival Ride CNC DXF SVG Free Download

About This Design

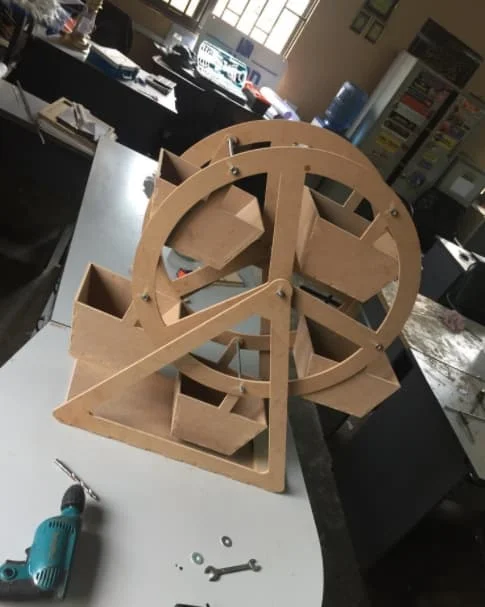

This intricate ferris wheel carnival ride design features a stunning 3D assembly with multiple precision-cut components. The design showcases a large circular wheel frame with evenly spaced passenger gondolas suspended around the perimeter. Each gondola is carefully designed with detailed side panels and realistic proportions that capture the essence of a classic carnival ferris wheel. The main wheel structure includes support spokes radiating from a central hub, creating an authentic mechanical appearance. The base structure features angular support legs that provide stability and visual balance to the entire assembly. All components are designed with proper assembly tabs and slots for easy construction without the need for additional fasteners.

Key Features

This ferris wheel design stands out with its remarkable attention to detail and structural accuracy. The gondolas feature realistic proportions with individual passenger compartments that swing freely when assembled. The wheel frame incorporates authentic spoke patterns and hub details that mirror real carnival rides. The modular design allows for easy assembly and disassembly, making it perfect for display purposes. Each component is optimized for laser cutting with clean edges and precise tolerances that ensure perfect fit during assembly.

Compatible Materials

This design works exceptionally well with 3-6mm plywood, MDF, or birch wood for sturdy construction. Medium-density fiberboard provides excellent detail retention and smooth edges after cutting. For lightweight versions, use 3-4mm acrylic or cardboard. When cutting wood materials, use moderate speeds with multiple passes to prevent burning on intricate details. The gondola components require precise cutting, so ensure your laser is properly calibrated. Thicker materials like 6mm plywood create more substantial, display-worthy models.

Use Cases & Applications

Perfect for creating miniature carnival scenes, dioramas, and scale model displays for museums or educational purposes. Ideal for children’s playsets, dollhouse accessories, or architectural model making. Event planners can use larger versions as decorative centerpieces for carnival-themed parties or fundraising events. Craft enthusiasts will appreciate this design for creating unique gifts or adding to miniature town displays. Model train enthusiasts can incorporate this ferris wheel into their carnival or fairground scenes. The design also works well for STEAM education projects teaching mechanical principles and assembly skills.

File Formats & Software

Download includes comprehensive files in DXF, SVG, and CDR formats packaged in a convenient RAR archive. Compatible with popular CNC software including LightBurn for laser cutting, AutoCAD for professional design work, and CorelDRAW for vector editing. Inkscape users can easily import and modify the SVG files for customization. The files include assembly instructions and part identification for straightforward construction. All vectors are properly scaled and ready for immediate cutting without additional preparation.

Free Download & License

Access this professional ferris wheel design completely free at hdidan.io without registration requirements or hidden fees. Instant download provides immediate access to all file formats and documentation. Licensed for both personal crafting projects and commercial applications, giving you complete flexibility in usage. Join thousands of makers who trust hdidan.io for high-quality CNC designs. Our commitment to free access ensures you can start your project immediately without barriers or limitations.
