Gothic Cathedral Gate Doors CNC DXF SVG Free Download

About This Design

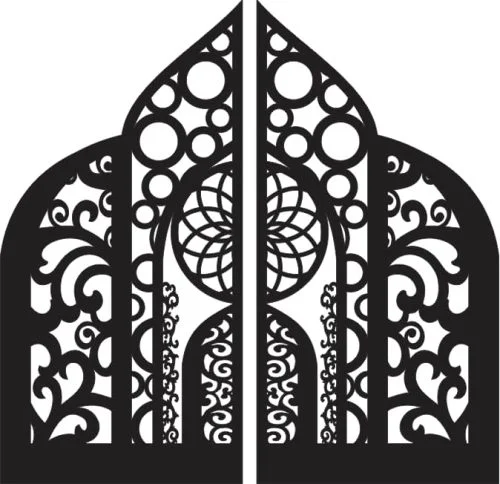

This magnificent Gothic cathedral gate design features two symmetrical door panels with stunning architectural details reminiscent of medieval European churches and cathedrals. The design showcases an elegant pointed arch top characteristic of Gothic architecture, filled with intricate circular patterns of varying sizes that create a mesmerizing bubble-like effect in the upper sections. The central portion features elaborate geometric rosette patterns with radiating elements that echo traditional Gothic rose windows found in grand cathedrals. The lower sections display flowing ornamental scrollwork and decorative flourishes that add depth and visual interest to the overall composition.

Key Features

The standout elements of this design include the perfectly symmetrical layout with two matching door panels, intricate circular dot patterns that create visual texture and allow light to filter through beautifully, and a central geometric rosette that serves as the focal point. The combination of large and small circular cutouts creates a sophisticated hierarchy of elements, while the ornamental scrollwork at the bottom adds classical elegance. The pointed arch silhouette gives the design its distinctive Gothic character, making it perfect for creating stunning architectural accent pieces.

Compatible Materials

This design works exceptionally well with various materials including hardwood, plywood, and MDF for traditional warm aesthetics, or acrylic and metal for modern contemporary applications. For wood materials, use 6-12mm thickness for optimal structural integrity while maintaining fine detail resolution. Metal cutting works best with 3-6mm steel or aluminum sheets, while acrylic should be 4-8mm thick. When laser cutting, ensure proper ventilation and adjust power settings according to material thickness to achieve clean, precise cuts on the intricate circular patterns and detailed scrollwork.

Use Cases & Applications

These Gothic cathedral gates are perfect for creating stunning room dividers, decorative wall panels, garden gates, or architectural accent pieces for homes, restaurants, and event venues. They make excellent backdrop elements for wedding ceremonies, theatrical productions, or themed events requiring medieval or Gothic ambiance. The design works beautifully as oversized wall art in living rooms, studies, or commercial spaces seeking sophisticated decorative elements. Hotels, restaurants, and retail spaces can use these panels to create memorable entrance features or partition elegant dining areas, while homeowners can install them as unique closet doors, pantry screens, or artistic garden features.

File Formats & Software

The download includes comprehensive file formats packaged in a convenient RAR archive: DXF files for AutoCAD and most CNC software, SVG for Inkscape and web applications, and CDR for CorelDRAW users. These vector files are fully compatible with popular laser cutting software including LightBurn, RDWorks, and LaserGRBL. Simply extract the files, import into your preferred software, scale to desired dimensions while maintaining proportions, and adjust cutting parameters for your specific material and machine settings. All paths are optimized for efficient cutting sequences.

Free Download & License

Download this stunning Gothic cathedral gate design completely free from hdidan.io with no registration required and instant access to all file formats. The generous licensing terms allow both personal and commercial use, making it perfect for hobbyists creating home decor projects or businesses producing custom architectural elements for clients. Join thousands of makers, craftspeople, and designers who rely on hdidan.io for high-quality CNC and laser cutting files. Simply visit the website, download immediately, and start creating your own beautiful Gothic-inspired pieces today.
