Islamic Geometric Panels CNC DXF SVG Free Download

About This Design

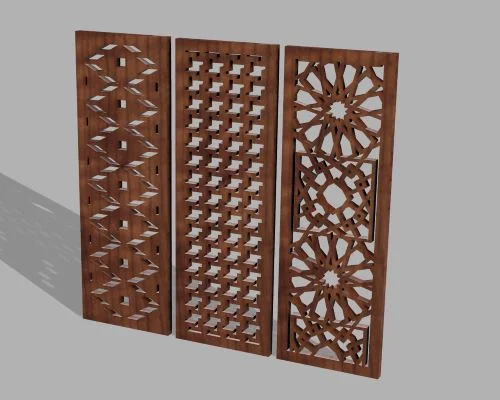

This stunning collection features three distinct Islamic geometric decorative panels, each showcasing the timeless beauty of traditional Middle Eastern design. The left panel displays an elegant diamond lattice pattern with interlocking geometric shapes that create a sophisticated repeating motif. The center panel presents a classic houndstooth-inspired pattern with angular, interconnected elements that flow seamlessly from top to bottom. The right panel features magnificent star and rose window motifs, incorporating large 16-pointed stars with intricate geometric infill patterns between them. Each panel measures approximately 12 inches in height and 4 inches in width, making them perfect for various decorative applications. The warm brown wood finish shown in the preview demonstrates how these designs will look when cut from natural materials.

Key Features

These Islamic geometric panels offer exceptional versatility with their three complementary yet distinct patterns. The precision-engineered cutting lines ensure clean, professional results with minimal post-processing required. Each design maintains optimal structural integrity while maximizing the decorative openwork areas. The patterns are scaled perfectly for residential and commercial applications, with consistent line weights throughout all three designs. The geometric precision reflects authentic Islamic artistic traditions while being optimized for modern CNC and laser cutting equipment.

Compatible Materials

These panels work beautifully with wood materials including birch plywood, MDF, and hardwoods up to 12mm thickness. For outdoor applications, consider marine-grade plywood or cedar. Acrylic sheets from 3-6mm create stunning translucent effects, especially when backlit. The designs also cut excellently in leather for smaller decorative items, and thin metals like aluminum or brass for premium finishes. When cutting wood, use moderate speeds with multiple passes for intricate details. For acrylic, ensure proper ventilation and use appropriate cutting speeds to prevent melting.

Use Cases & Applications

These versatile Islamic geometric panels serve numerous decorative and functional purposes in both residential and commercial settings. Use them as elegant room dividers or privacy screens in modern homes, restaurants, or office spaces. They make stunning wall art pieces when mounted individually or as a complete set. Interior designers frequently incorporate these patterns into cabinet door inserts, window screens, and architectural details. The panels work exceptionally well as decorative elements in meditation rooms, spas, or cultural centers. For events, they create beautiful backdrops for weddings or cultural celebrations. Small-scale versions make unique gift items, while larger installations serve as striking architectural features in hotels, mosques, or cultural institutions.

File Formats & Software

Download includes a comprehensive ZIP package containing DXF, SVG, and CDR file formats for maximum compatibility. The DXF files work perfectly with AutoCAD, LightBurn, and most CNC control software. SVG files integrate seamlessly with Inkscape, Adobe Illustrator, and web-based design tools. CorelDRAW users can directly open the included CDR files. All formats maintain vector precision for scaling to any size without quality loss. The files are pre-optimized with proper cutting paths and include both individual panel files and a combined layout for efficient material usage.

Free Download & License

Access these premium Islamic geometric panel designs absolutely free at hdidan.io without any registration requirements. Simply click download for instant access to all file formats. The generous licensing terms permit both personal and commercial use, making these files perfect for hobbyists, professional woodworkers, and businesses alike. Whether you’re creating custom home decor or developing products for sale, these files provide exceptional value. Join thousands of makers who trust hdidan.io for high-quality, free CNC and laser cutting files that deliver professional results every time.
