Locomotive Train Engine CNC DXF SVG Free Download

About This Design

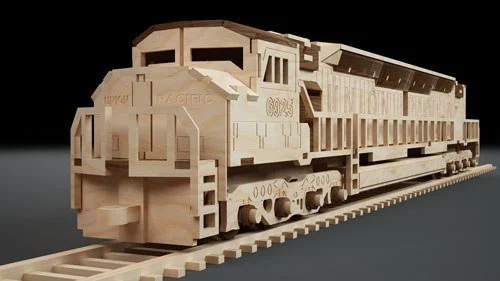

This impressive locomotive train engine design features a highly detailed 3D assembly structure perfect for CNC laser cutting enthusiasts. The design showcases a classic diesel locomotive with intricate geometric patterns and precisely engineered interlocking components. The model displays authentic railroad proportions with detailed cab windows, ventilation grilles, side panels, and undercarriage elements. Each component is carefully crafted with finger joints and assembly tabs for seamless construction. The locomotive measures approximately 24 inches in length when fully assembled, making it an impressive display piece with realistic proportions and authentic railroad styling details.

Key Features

This locomotive design stands out with its exceptional attention to detail and engineering precision. The interlocking tab-and-slot construction ensures sturdy assembly without requiring glue or fasteners. Multiple layers create dimensional depth, while precise cutting lines guarantee perfect fit during assembly. The design includes numbered components for easy identification and step-by-step construction. Authentic locomotive proportions and realistic details make this a premium quality CNC project suitable for both beginners and experienced makers.

Compatible Materials

Optimal results are achieved using 3mm to 6mm thick materials including birch plywood, Baltic birch, MDF, and hardboard. The design works excellently with 1/8 inch plywood for detailed components and 1/4 inch for structural elements. Acrylic and PETG plastics produce modern interpretations, while cardboard offers budget-friendly prototyping options. For laser cutting, use moderate speeds with multiple passes on thicker materials. Ensure proper ventilation when cutting MDF, and test cut small sections first to optimize settings for your specific laser power and material combination.

Use Cases & Applications

This locomotive design serves multiple purposes from educational models to decorative displays. Perfect for model railroad enthusiasts, train collectors, and transportation museums seeking authentic display pieces. Ideal for STEM education projects teaching mechanical assembly and engineering principles. Makes exceptional gifts for train lovers, retirement presents for railroad workers, or unique desk accessories for transportation professionals. Suitable for craft fairs, maker spaces, and woodworking demonstrations. The assembled model works beautifully as office decor, man cave displays, children’s educational toys, or centerpieces for railroad-themed events and model train exhibitions.

File Formats & Software

Download includes comprehensive RAR archive containing DXF, SVG, and CDR file formats for maximum compatibility. Works seamlessly with LightBurn laser software, AutoCAD for precision editing, CorelDRAW for vector manipulation, and free Inkscape for budget-conscious makers. Files are organized by assembly sections with clear naming conventions. Simply import into your preferred software, adjust material thickness settings, and send to your CNC router or laser cutter. Compatible with most commercial and hobbyist laser cutting systems.

Free Download & License

Access this professional locomotive design absolutely free at hdidan.io without registration requirements or hidden fees. Instant download provides immediate access to all file formats and assembly instructions. Licensed for both personal hobby projects and commercial manufacturing applications. No attribution required, though credit is appreciated. Perfect for small businesses, educational institutions, and individual makers. Join thousands of satisfied users who rely on hdidan.io for premium quality CNC designs and comprehensive laser cutting resources.

Discover premium locomotive train engine CNC laser cut designs at hdidan.io, your trusted source for professional DXF SVG CDR files. This detailed 3D assembly project combines authentic railroad styling with precision engineering, perfect for CNC router enthusiasts and laser cutting hobbyists. Download includes comprehensive file formats compatible with all major cutting software, ensuring successful projects every time. Our free CNC files library features hundreds of premium designs for wood, MDF, and acrylic cutting applications, supporting both personal and commercial use.
