Medieval Sword Dagger CNC DXF SVG Free Download

About This Design

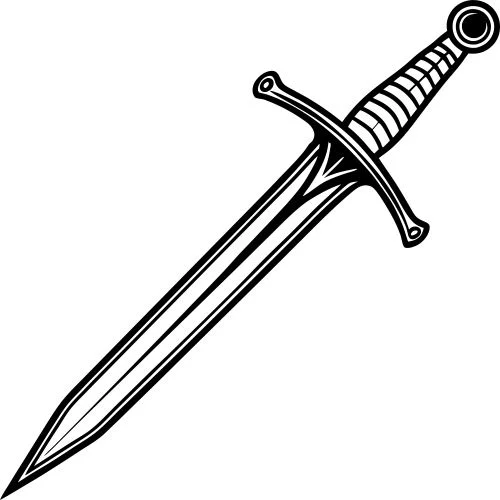

This striking medieval sword dagger design features an authentic double-edged blade with a distinctive tapered point and elegant proportions. The design showcases a detailed crossguard with curved quillons that provide the classic medieval sword silhouette. The handle displays intricate wrapped grip detailing with precisely spaced binding lines that create a realistic leather-wrapped appearance. The pommel features a circular design with concentric rings, adding authentic period detail. The blade includes a central fuller groove running down the middle, characteristic of historical sword construction. This vector design captures the essence of medieval weaponry with clean lines perfect for CNC laser cutting applications.

Key Features

The design emphasizes historical accuracy with properly proportioned blade-to-handle ratios typical of medieval daggers. The crossguard features subtle curves that enhance both functionality and aesthetic appeal. The wrapped handle grip shows meticulous attention to detail with evenly spaced binding segments. The pommel’s circular design with concentric elements provides visual weight and balance. All elements are optimized for laser cutting with appropriate line weights and no overlapping paths, ensuring clean cuts across various materials and thicknesses.

Compatible Materials

This medieval sword design works excellently with wood materials including plywood, MDF, and solid hardwoods in thicknesses from 3mm to 12mm. Acrylic sheets produce stunning results with clean edges and professional appearance. Metal cutting applications work well with mild steel, stainless steel, and aluminum up to 6mm thickness. Leather cutting creates unique decorative pieces perfect for medieval themed projects. For thicker materials, consider adjusting cutting speeds and power settings to achieve optimal edge quality and prevent burning on organic materials.

Use Cases & Applications

Perfect for medieval themed wall art, gaming room decorations, renaissance fair props, and theatrical productions. Ideal for creating custom gifts for history enthusiasts, gamers, and collectors. Excellent for educational displays in museums, schools, and historical presentations. Use as templates for leather crafting, metal working projects, or woodworking applications. Great for creating decorative elements for themed restaurants, escape rooms, or entertainment venues. Scale the design for various sizes from small desk decorations to large wall installations. Perfect for cosplay props when cut from lightweight materials like foam board or thin plywood.

File Formats & Software

Download includes DXF, SVG, and CDR formats in a convenient ZIP package. Compatible with popular CNC software including LightBurn for laser cutting, AutoCAD for professional CAD work, and CorelDRAW for vector editing. Works seamlessly with Inkscape for free vector editing and scaling adjustments. Files are optimized for direct import into most CNC control software without requiring additional preprocessing. Vector paths are properly joined and oriented for efficient cutting sequences, minimizing material waste and cutting time across all compatible CNC machines.

Free Download & License

Access this medieval sword dagger design completely free at hdidan.io without registration requirements or hidden fees. Instant download provides immediate access to all file formats. Licensed for both personal and commercial use, allowing you to create products for sale or personal enjoyment. No attribution required, giving you complete freedom to use the design in your projects. Join thousands of makers who trust hdidan.io for high-quality CNC designs. Our commitment to free access ensures everyone can enjoy professional-grade laser cutting files regardless of budget constraints.
