Rebel Alliance Symbol Star Wars CNC DXF SVG Free Download

About This Design

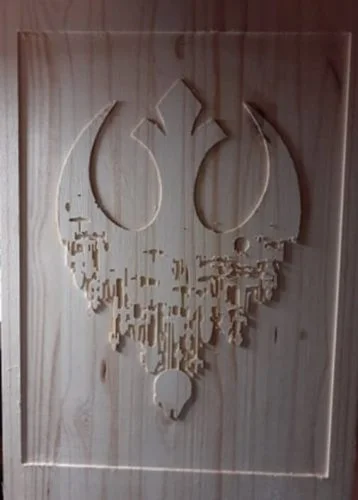

This stunning Rebel Alliance symbol design features the iconic phoenix-like emblem from the Star Wars universe, expertly crafted for CNC laser cutting. The design showcases the distinctive bird-like wings spread wide at the top, flowing into an intricate geometric pattern of interconnected lines and angular elements that cascade downward. The lower portion features a complex network of rectangular and linear segments that create a sophisticated technical appearance, reminiscent of circuitry or architectural blueprints. The entire design maintains clean, precise lines perfect for laser cutting, with the main symbol measuring approximately 8-12 inches in height when cut from standard materials.

Key Features

This Rebel Alliance design stands out with its perfect balance of iconic recognition and intricate detailing. The upper phoenix wings are bold and immediately recognizable, while the lower geometric cascade adds unique artistic flair that sets this apart from simple symbol reproductions. The design incorporates varying line weights and negative spaces that create excellent depth and visual interest when illuminated or displayed against contrasting backgrounds. Every element has been optimized for clean laser cutting with minimal waste material and smooth edge finishing.

Compatible Materials

This versatile design works excellently with wood materials including birch plywood, MDF, and Baltic birch in thicknesses from 3mm to 12mm. For premium applications, acrylic sheets in 3-6mm thickness produce stunning results, especially when backlit. The design also cuts beautifully in leather for unique decorative pieces, and thin metals like aluminum or stainless steel up to 2mm thick. When cutting wood, use multiple passes at moderate speed for clean edges, while acrylic requires single-pass cutting at higher speeds to prevent melting.

Use Cases & Applications

Perfect for Star Wars enthusiasts, this design creates impressive wall art for gaming rooms, home theaters, offices, and bedrooms. It works wonderfully as a backlit accent piece, conference room decoration, or man cave centerpiece. The design is ideal for custom gifts, convention displays, cosplay props, and themed party decorations. Business applications include gaming store displays, movie theater lobbies, entertainment venues, and collector shops. The intricate lower pattern makes it suitable for room dividers, decorative screens, or large-scale architectural elements. It’s also perfect for creating custom lamp shades, night lights, or illuminated signage.

File Formats & Software

Download includes compressed RAR archive containing DXF, SVG, and CDR file formats for maximum compatibility. The DXF files work perfectly with AutoCAD, LightBurn, and most CNC software programs. SVG format ensures compatibility with Inkscape, Adobe Illustrator, and web-based design tools. CorelDRAW users can directly open the included CDR files. All formats are properly scaled and ready for cutting without additional modification. Simply import into your preferred laser cutting software, select your material settings, and begin cutting immediately.

Free Download & License

Access this premium Rebel Alliance symbol design completely free at hdidan.io without registration or signup requirements. Instant download provides immediate access to all file formats in a single convenient package. The license permits both personal and commercial use, making it perfect for hobbyists, makers, small businesses, and commercial manufacturers. Create unlimited projects, sell finished products, or use in client work without restrictions. Join thousands of makers who rely on hdidan.io for high-quality, free CNC laser cutting files and designs.
