Scorpion 3D Assembly CNC DXF SVG Free Download

About This Design

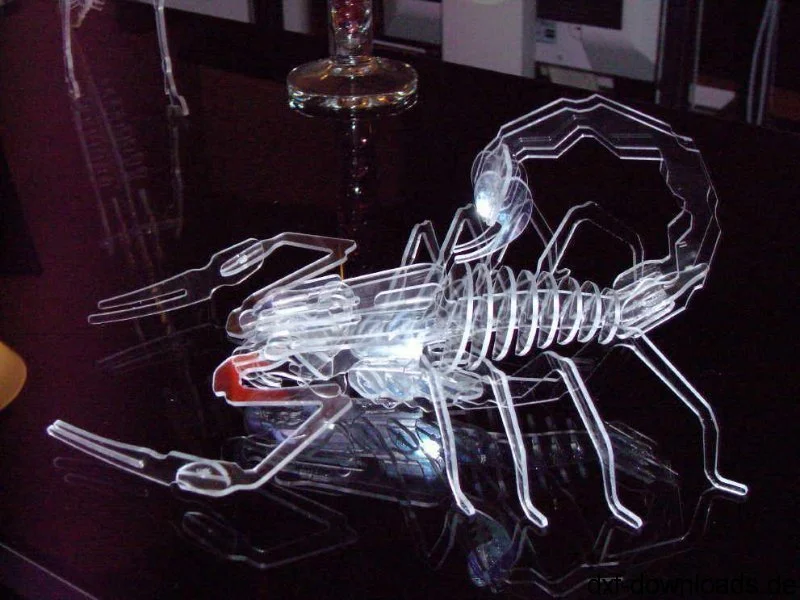

This remarkable 3D scorpion assembly design showcases intricate engineering with multiple interlocking components that create a stunning three-dimensional arachnid sculpture. The design features detailed anatomical elements including segmented body sections, articulated claws, jointed legs, and a characteristic curved tail with stinger. Each component is precisely engineered with tabs and slots for seamless assembly without requiring glue or fasteners. The scorpion’s body displays realistic proportions with a ribbed exoskeleton texture, while the claws feature authentic pincered shapes. The tail segments create a natural curve when assembled, topped with a pointed stinger element that completes this impressive predatory form.

Key Features

This design stands out with its sophisticated interlocking mechanism that ensures stable assembly while maintaining visual appeal from all angles. The multi-layered construction creates depth and shadow effects that enhance the scorpion’s menacing appearance. Each leg is individually crafted with joint segments for realistic articulation, while the claws feature internal bracing for structural integrity. The segmented tail design allows for natural positioning and creates dynamic visual interest. All cutting lines are optimized for clean edges and precise fitting, ensuring professional results every time.

Compatible Materials

This versatile design works excellently with various materials including 3-6mm plywood, MDF, and birch wood for natural finishes. Acrylic sheets in 3-5mm thickness create stunning translucent effects, especially with colored or frosted variants. The design also cuts beautifully in leather, cardboard, and thin metal sheets. For best results, use sharp blades and moderate cutting speeds to ensure clean edges on intricate details. Consider material grain direction for wooden versions to maximize strength in thin connecting elements. Test cuts are recommended for new materials to optimize settings.

Use Cases & Applications

This striking scorpion assembly serves multiple purposes from educational displays in science classrooms to unique desktop sculptures for offices and homes. It makes an excellent conversation piece for entomology enthusiasts, nature lovers, and anyone appreciating detailed craftsmanship. The design is perfect for maker spaces, STEM education projects, and woodworking demonstrations. Gift shops, museums, and educational retailers will find this design appealing for their customers. It also works wonderfully for Halloween decorations, themed parties, or as part of larger diorama displays. The professional finish makes it suitable for architectural model making and design presentations where attention to detail matters.

File Formats & Software

The design comes in versatile DXF format, ensuring compatibility with virtually all CNC and laser cutting software including LightBurn, AutoCAD, CorelDRAW, Adobe Illustrator, and Inkscape. The vector-based format allows for easy scaling to different sizes while maintaining precision. Each component is properly layered and organized for efficient cutting workflows. The files include clear assembly guidelines and can be easily modified for custom requirements. Import the DXF file directly into your preferred software, adjust material settings, and begin cutting immediately.

Free Download & License

Download this exceptional scorpion 3D assembly design completely free from hdidan.io without any registration requirements or waiting periods. The download includes high-quality DXF files ready for immediate use in both personal and commercial projects. Our generous licensing allows you to create and sell finished products using this design. Whether you’re a hobbyist, educator, or business owner, you have full freedom to use these files as needed. Join thousands of makers who trust hdidan.io for premium CNC and laser cutting designs at no cost.
