Tall Storage Tower Shelf CNC DXF SVG Free Download

About This Design

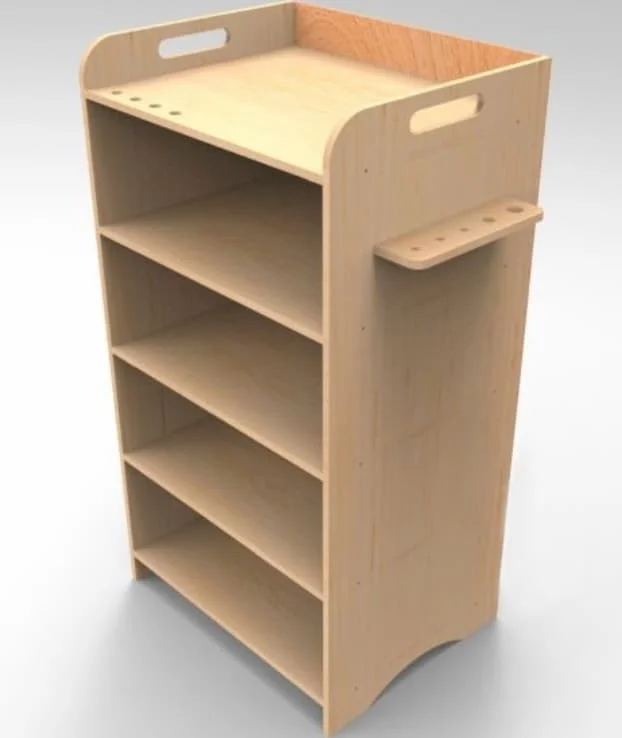

This tall storage tower shelf features a sleek, professional design with clean lines and functional compartments. The unit stands vertically with four spacious horizontal shelves of equal height, providing ample storage space for books, tools, supplies, or decorative items. At the top, there’s a convenient carrying tray with integrated handles on both sides, making the entire unit portable when needed. The design showcases smooth curved edges and rounded corners for a modern aesthetic, while the side panels feature a small mounting bracket or hook attachment point. The overall proportions create an elegant tower that maximizes vertical storage space while maintaining a compact footprint.

Key Features

The design incorporates several thoughtful features that enhance both functionality and aesthetics. The four equal-sized compartments provide versatile storage options, while the top tray with dual handles offers convenient portability. The curved side panels add visual appeal and structural stability, while the mounting point on the side panel allows for additional accessories or wall mounting options. The clean, minimalist design makes it suitable for various environments from workshops to offices to home organization spaces.

Compatible Materials

This storage tower cuts beautifully in wood materials including birch plywood, pine, oak, and maple in thicknesses from 12mm to 20mm. MDF and engineered plywood work excellently for painted finishes, while natural hardwoods showcase the grain beautifully. For lighter applications, 6mm acrylic or polycarbonate creates a modern transparent look. When cutting wood, use slower speeds with multiple passes for thick materials, and sand edges smooth after cutting for professional results.

Use Cases & Applications

This versatile storage tower serves numerous organizational needs across different settings. In workshops, it holds tools, hardware, and supplies within easy reach. For offices, it organizes files, books, and stationery with the top tray perfect for frequently used items. In craft rooms, it stores materials by project type, while in bedrooms or living areas, it displays books, plants, or decorative objects. The portable design with top handles makes it ideal for mobile workstations, trade shows, or market displays. Small businesses can use it for inventory organization, while educators appreciate it for classroom supply storage. The professional appearance suits retail environments for product displays or storage behind counters.

File Formats & Software

The design files come compressed in RAR format containing DXF, SVG, and CDR versions for maximum compatibility. The DXF files work perfectly with AutoCAD, LightBurn, and most CNC control software. SVG files open seamlessly in Inkscape, Adobe Illustrator, and web-based design tools. CorelDRAW users can directly access the CDR files. All files are properly scaled and ready for cutting without modifications, with clear layer organization for easy material setup and cutting parameter configuration.

Free Download & License

Download this professional storage tower shelf design completely free from hdidan.io without registration or email requirements. Simply click download for instant access to all file formats. The design comes with full commercial and personal use rights, allowing you to create and sell finished products, modify the design for custom projects, or use it in commercial manufacturing. No attribution required, though always appreciated. Join thousands of makers who trust hdidan.io for high-quality, free CNC designs that deliver professional results every time.

Transform your organization with this professional tall storage tower shelf, available as free CNC files for laser cutting and routing. This comprehensive DXF SVG CDR download package includes all formats needed for precise fabrication in wood, MDF, or acrylic materials. Perfect for woodworkers seeking functional furniture designs, this CNC router file delivers clean cuts and professional assembly. Download instantly from hdidan.io’s extensive collection of free laser cut designs, where quality meets accessibility for makers worldwide.
