Tic Tac Toe Game Board CNC DXF SVG Free Download

About This Design

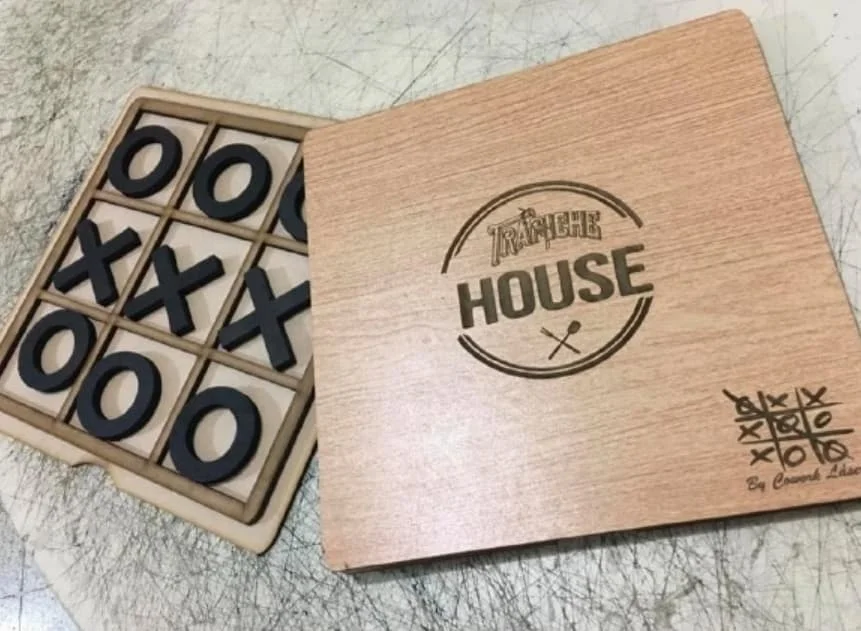

This professionally crafted tic tac toe game board design features a classic 3×3 grid layout with integrated storage compartment for game pieces. The design showcases a hinged wooden box construction with clean, precisely cut lines that create the iconic game grid. The board opens to reveal a storage area that neatly holds the X and O game pieces, keeping everything organized when not in play. The natural wood grain finish gives this timeless game an elegant, artisanal appearance that appeals to both children and adults. The design incorporates rounded corners and smooth edges for comfortable handling during gameplay.

Key Features

The standout feature of this design is its dual-purpose functionality as both a game board and storage solution. The hinged lid mechanism allows for easy access to stored pieces while maintaining a flat playing surface. The precisely sized compartments ensure that all X and O pieces fit securely without rattling around. The laser-cut construction guarantees perfect alignment of all grid lines and joints, resulting in a professional-quality finished product that rivals commercial game boards.

Compatible Materials

This design works excellently with various wood materials including birch plywood, oak, maple, and MDF boards in 3-6mm thickness. The hinged construction requires precise cutting, making it ideal for laser cutting rather than routing. Hardwoods provide durability for frequent use, while softer woods like pine offer easier cutting and finishing. The design can also be adapted for acrylic materials in 3-5mm thickness, creating a modern transparent version. Always test cut settings on scrap material to ensure clean edges and proper fit tolerances.

Use Cases & Applications

This versatile game board serves multiple purposes across various settings. It makes an excellent educational tool for classrooms, helping children develop strategic thinking and problem-solving skills. As a craft project, it’s perfect for woodworking enthusiasts, maker spaces, and DIY workshops. The compact design makes it ideal for travel games, camping trips, and family gatherings. Small businesses can produce these as retail products for toy stores, gift shops, or craft fairs. The timeless appeal also makes it a thoughtful handmade gift for birthdays, holidays, or special occasions.

File Formats & Software

The complete design package includes DXF, SVG, and CDR file formats in a convenient ZIP archive. These files are fully compatible with popular laser cutting software including LightBurn, LaserCAD, and RDWorks. Vector editing software like CorelDRAW, Adobe Illustrator, and Inkscape can open and modify the designs as needed. The files are optimized for efficient cutting with minimal waste material. All cutting lines are properly organized on separate layers for easy setup and operation on various CNC laser cutting machines.

Free Download & License

Access this premium tic tac toe game board design completely free at hdidan.io without any registration requirements. The instant download provides immediate access to all file formats and detailed cutting instructions. The generous licensing terms allow both personal and commercial use, making it perfect for hobbyists and small businesses alike. Join thousands of makers who trust hdidan.io for high-quality, professionally designed CNC and laser cutting files that deliver exceptional results every time.
