Wooden Box with Sliding Lid CNC DXF SVG Free Download

About This Design

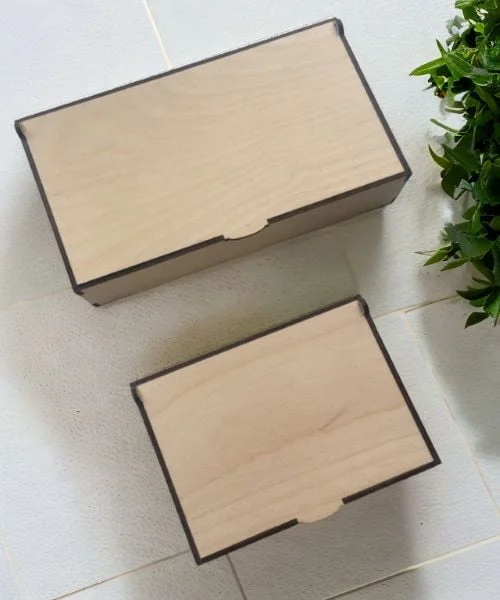

This elegant wooden box design features a sophisticated sliding lid mechanism that creates a smooth, seamless storage solution. The design consists of two perfectly sized rectangular boxes photographed against a clean white surface with decorative greenery. The larger box measures approximately 8 inches in length while the smaller companion box is roughly 5 inches, both featuring the same sliding lid construction. The natural wood grain visible on the light-colored surfaces creates an organic, minimalist aesthetic that complements modern and traditional decor styles. The precision-cut edges demonstrate the clean lines achievable through CNC laser cutting technology.

Key Features

The sliding lid mechanism represents the standout feature of this design, utilizing precise interlocking joints that allow the top panel to slide smoothly along guided channels. The finger notches cut into the front edges provide easy access for opening without requiring handles or additional hardware. The seamless construction eliminates visible fasteners, creating a clean, professional appearance. The modular design allows for easy scaling to create multiple sizes from the same pattern files, perfect for creating matching storage sets.

Compatible Materials

This design works exceptionally well with 6mm to 12mm thick materials including birch plywood, maple hardwood, MDF, and bamboo panels. For laser cutting, use slower speeds with higher power settings to ensure clean edges through the thicker material sections. Acrylic sheets in 6mm thickness also produce stunning translucent storage boxes, while 3mm leather can create unique jewelry boxes. When cutting hardwoods, multiple passes may be necessary to achieve complete penetration while maintaining edge quality.

Use Cases & Applications

These versatile storage boxes serve countless practical and decorative purposes throughout homes and offices. Use them as elegant desk organizers for stationery, jewelry boxes for precious accessories, or gift packaging for special occasions. The clean design makes them perfect for retail product packaging, wedding favor boxes, or corporate gift containers. Crafters appreciate them for storing beads, threads, and small tools, while photographers use them for memory cards and accessories. The scalable design allows woodworkers to create complete storage systems, from small trinket boxes to larger document storage solutions for professional environments.

File Formats & Software

The complete design package includes DXF, SVG, and CDR vector files optimized for various CNC and laser cutting software platforms. LightBurn users can import the files directly and adjust cutting parameters for their specific laser power and material combinations. AutoCAD and CorelDRAW provide advanced editing capabilities for customizing dimensions or adding personalized engravings. Inkscape offers a free alternative for basic modifications and file preparation. All vector paths are properly organized with separate layers for cutting and optional engraving details.

Free Download & License

Access these professional-quality wooden box design files completely free through hdidan.io without any registration requirements or hidden fees. The instant download provides immediate access to all file formats, enabling you to start your project right away. Our open license permits both personal crafting projects and commercial manufacturing applications, making these files perfect for small businesses, craft sellers, and professional woodworkers. Share your completed projects with our community to inspire other makers and showcase the versatility of these timeless storage solutions.
